Product Description

Description

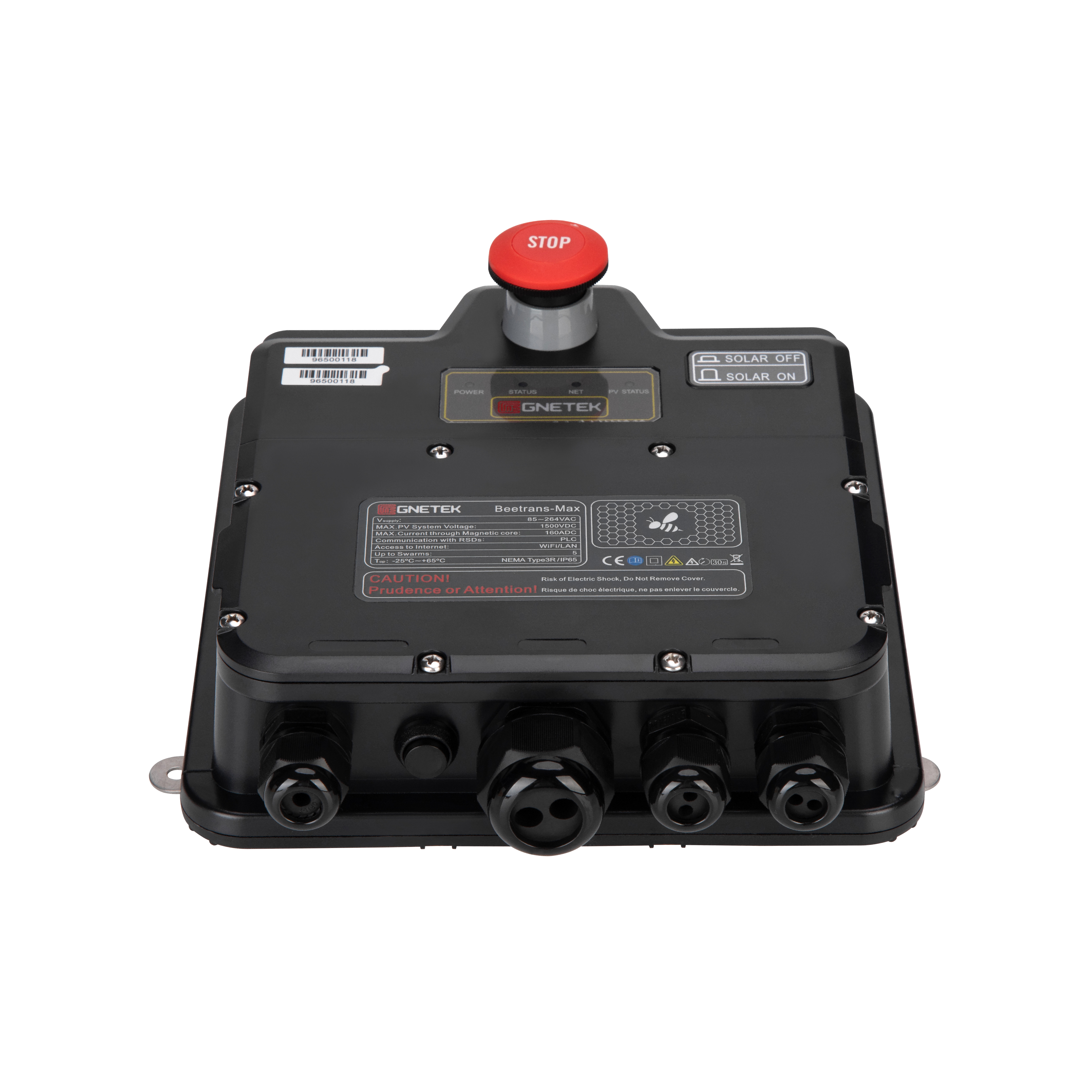

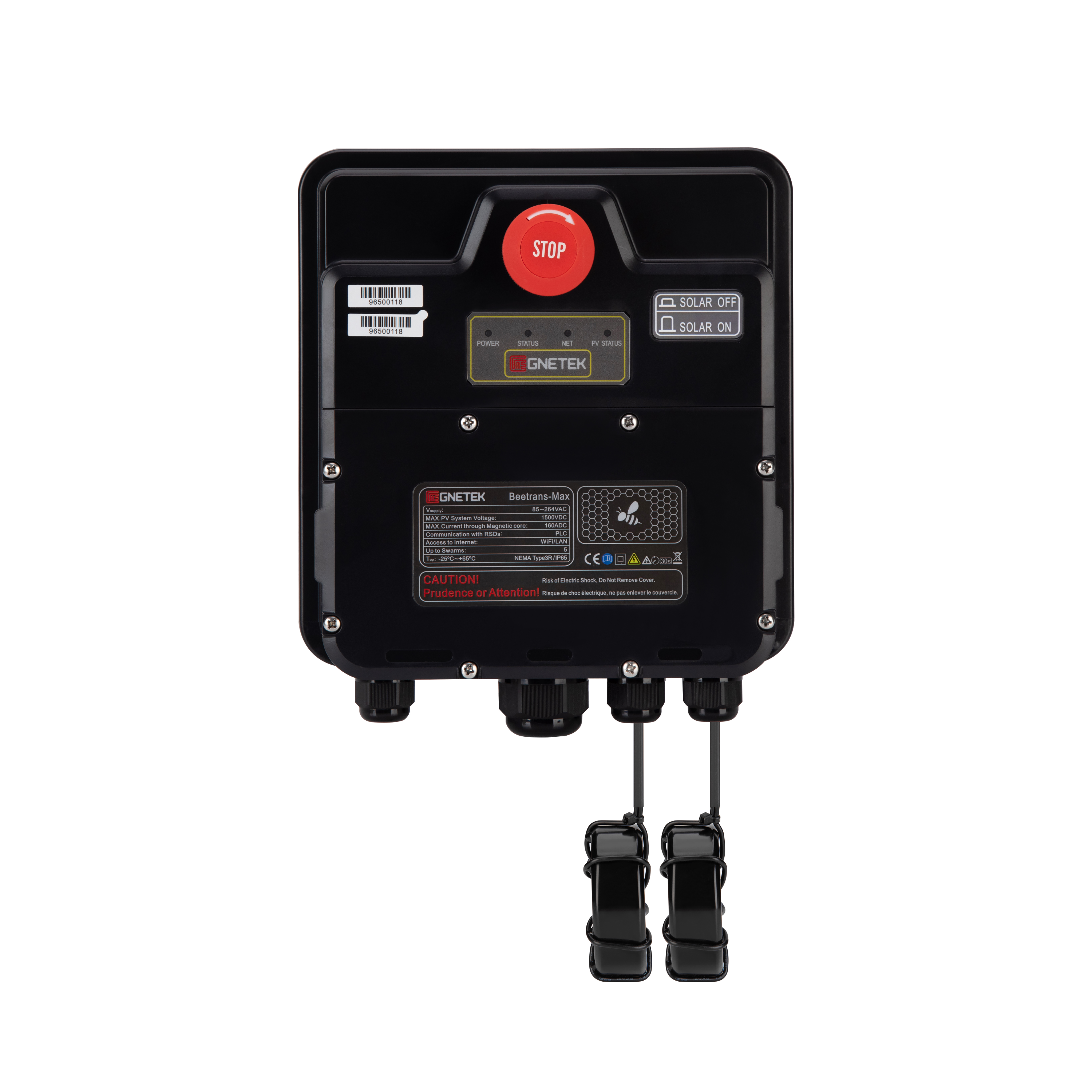

As part of GNE rapid shutdown solution, the shutdown controller Beetrans-Max is designed to work with GNE RSD for module-level shutdown.

Beetrans-Max continuously sends turn-on signals to GNE RSD to activate normal power output.

Beetrans-Max can be equipped with 4 magnetic rings and supports up to 60 strings of up to 30 PV modules each.

Pressing the red “Emergency Button” or disconnecting AC power to the Beetrans-Max will shut off the output of each RSD.

Functions & Features

▶ Module-level rapid shutdown within 1 second

▶ Complied with NEC 2017&2020 690.12 requirements and UL1741/UL3741 regulations

▶ PLC communication with RSD for rapid shutdown function

▶ Advanced crosstalk prevention solution

▶ Weatherproof outdoor enclosure

▶ Easy to install and operate

Code	Beetrans-Max
Specification
Maximum No. of Core equiped	4
Maximum String Voltage	1500 V
Maximum No.of Panels Controlled	1800
Communication method	PLC
Access to lnternet	LAN / WiFi / 4G
Application
Working temperature range	-25～+65 ℃
Relative Humidity range	0～100%
Ingress Protection	NEMA Type3R / IP65
Communication distance	300 m
Certification
Regulation	NEC 2017&2020 690.12
CE	IEC/EN 62109-1:2010a
ETL	UL1741 / UL3741
RoHs	2011/62EU 2015/863EU
Structure
Size	220x210x66 mm（excluding cord length）
Weight	840 g
Power supply parameters	100-~240 VAC

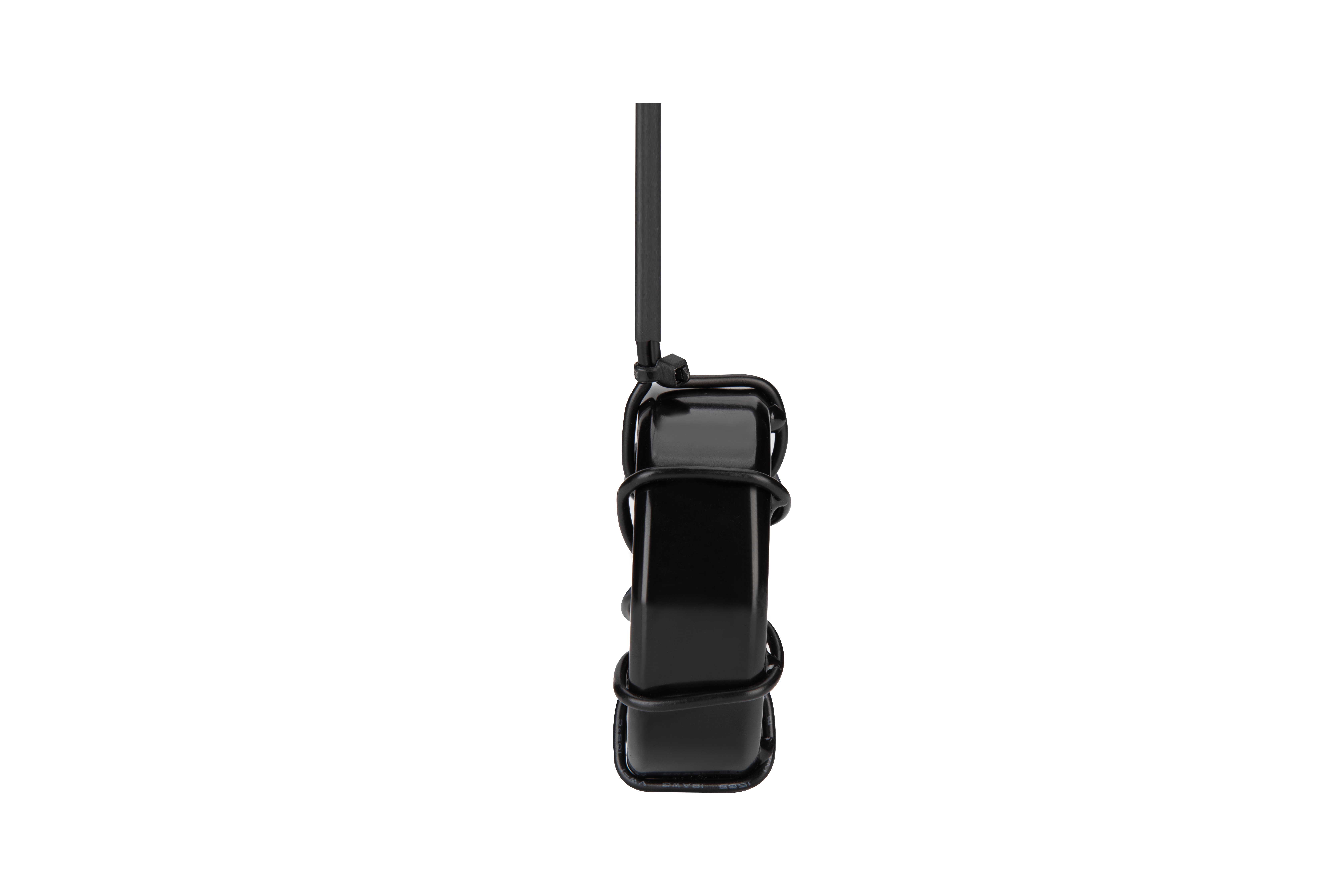

Magnetic Ring Parameters
Inside diameter / Outside diameter	29mm / 65mm
Maximum current per ring	160A
Maximum number of strings supported by a single magnetic ring	8 strings
