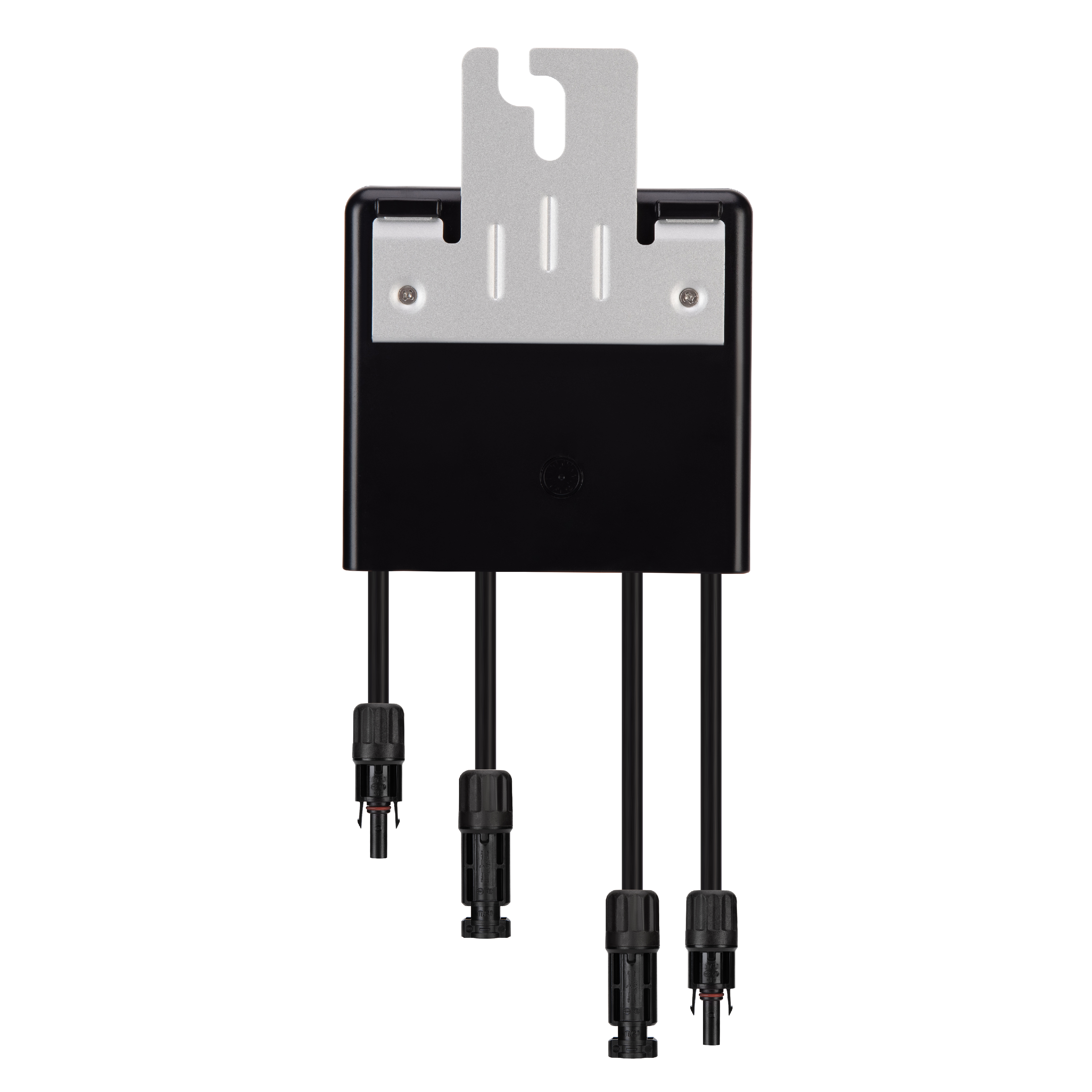

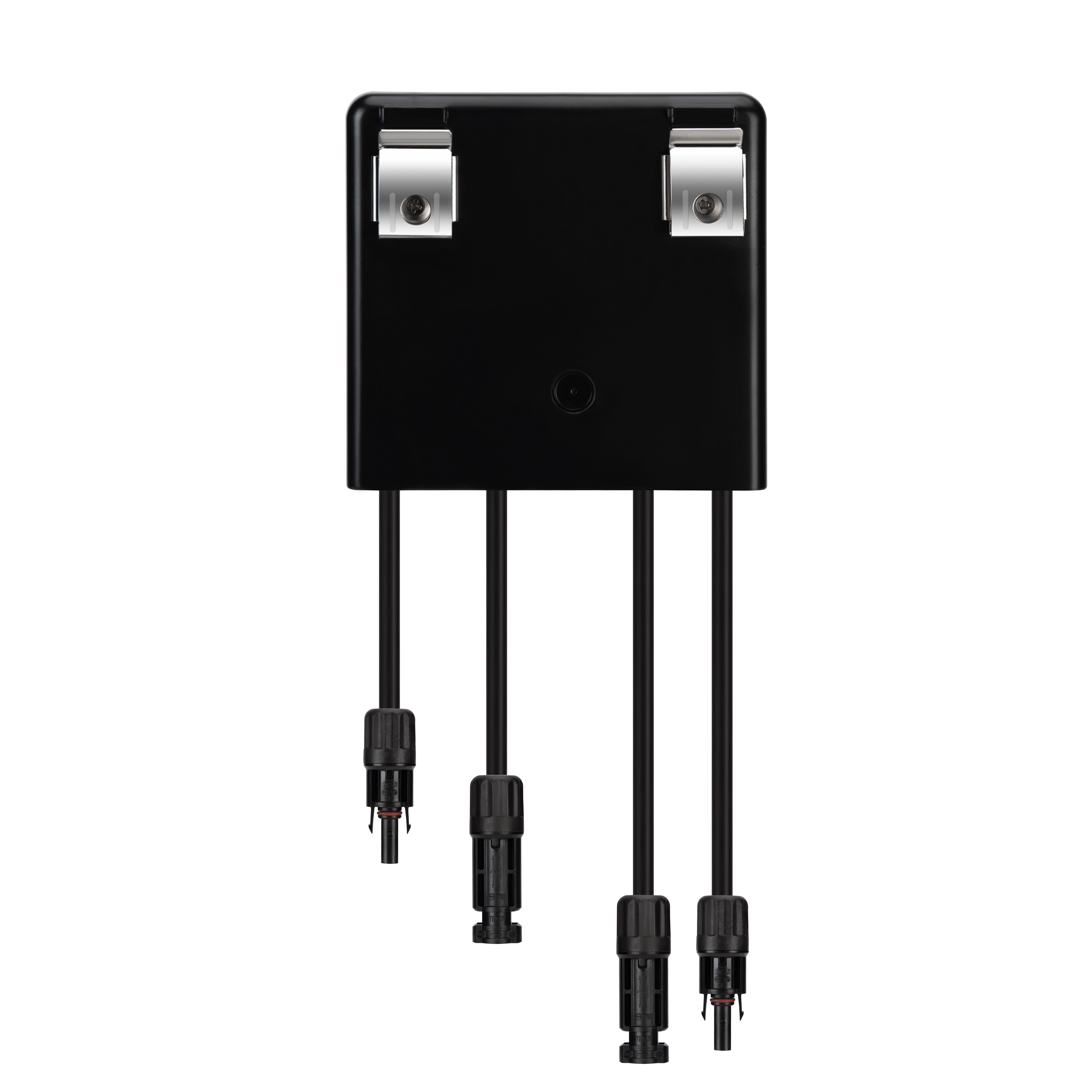

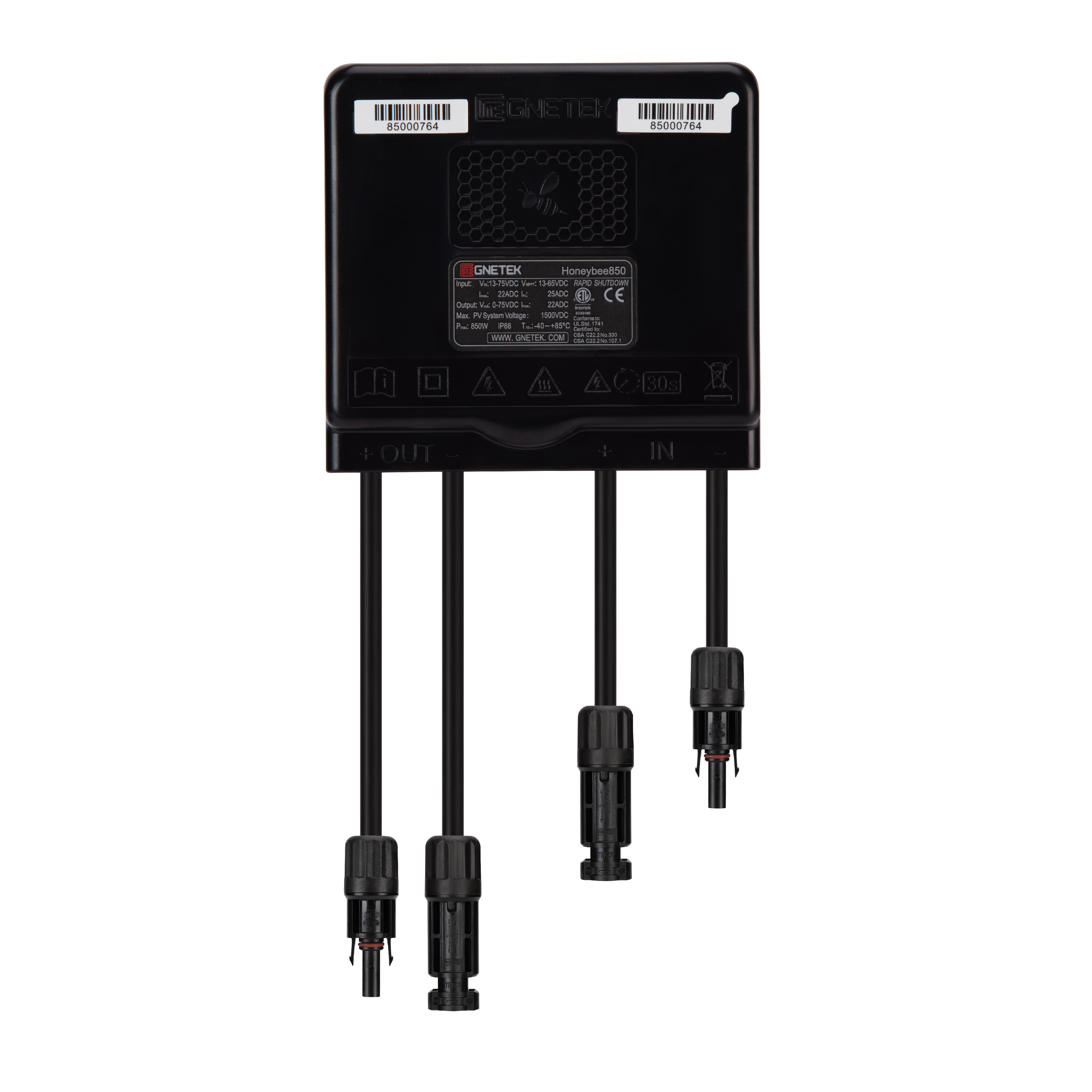

Honeybee700/850
Product Features
▶ Improving Efficiency: Component-level MPPT tracking, increasing system power generation by 5-30%
▶ Safety Shutdown: Automatically shutdown in case of overvoltage, overcurrent, or overtemperature, supporting local and remote shutdown to eliminate high voltage danger
▶ Accurate Monitoring: Real-time monitoring of each component's operating data to promptly identify problematic components
▶ Convenient Installation: Can be directly connected to existing PV systems without changing the original wiring
▶ Long Lifespan: Designed for a 25-year lifespan, matching with PV modules
规格参数
|
Model |
Honeybee700 |
Honeybee850 |
|
Input Parameter |
|
|
|
Maximum Input Power |
700 W |
850 W |
|
Maximum Input Voltage |
75 VDC |
75 VDC |
|
Working Voltage Range |
12～75 VDC |
12～75 VDC |
|
MPPT Voltage Range |
12～60 VDC |
12～65 VDC |
|
Short-circuit Current(Isc) |
20 A |
25 A |
|
Maximum Input Current |
18 A |
22 A |
|
Output Parameters |
|
|
|
Maximum Output Power |
700W |
850 W |
|
Voltage Range |
0～75 VDC |
0～75 VDC |
|
Maximum Output Current |
18 A |
22 A |
|
Maximum Conversion Efficiency |
99.50% |
99.50% |
|
Others |
|
|
|
Maximum System Voltage |
1500 VDC |
|
|
Operation Temperature |
-40～+85℃ |
|
|
Relative Humidity |
0～100% |
|
|
Ingress Protection |
IP68 |
|
|
Protection Level |
Ⅱ |
|
|
Communication Model |
2.4G/PLC/HPLC |
|
|
Installation Specifications |
|
|
|
Cable Length (input/output) |
Input：800mm,200mm Output：1000 mm*2(or Customizable) |
|
|
Size |
118x111x25 mm |
|
|
Weight |
740 g |
|
|
Connector (input/output) |
Compatible with Staubli MC4 or Customizable |
|
|
Standard/Certification |
|
|
|
CE |
IEC/EN 62109-1:2010 |
|
|
RoHs |
2011/62EU 2015/863EU |
|
|
REACH |
EU REACH Regulation No 1907/2006 Article 33 |
|
| WEEE |
EN 50419:022 |
|
※可自定义 PLC 优化器的工作状态（默认开启或关闭）
