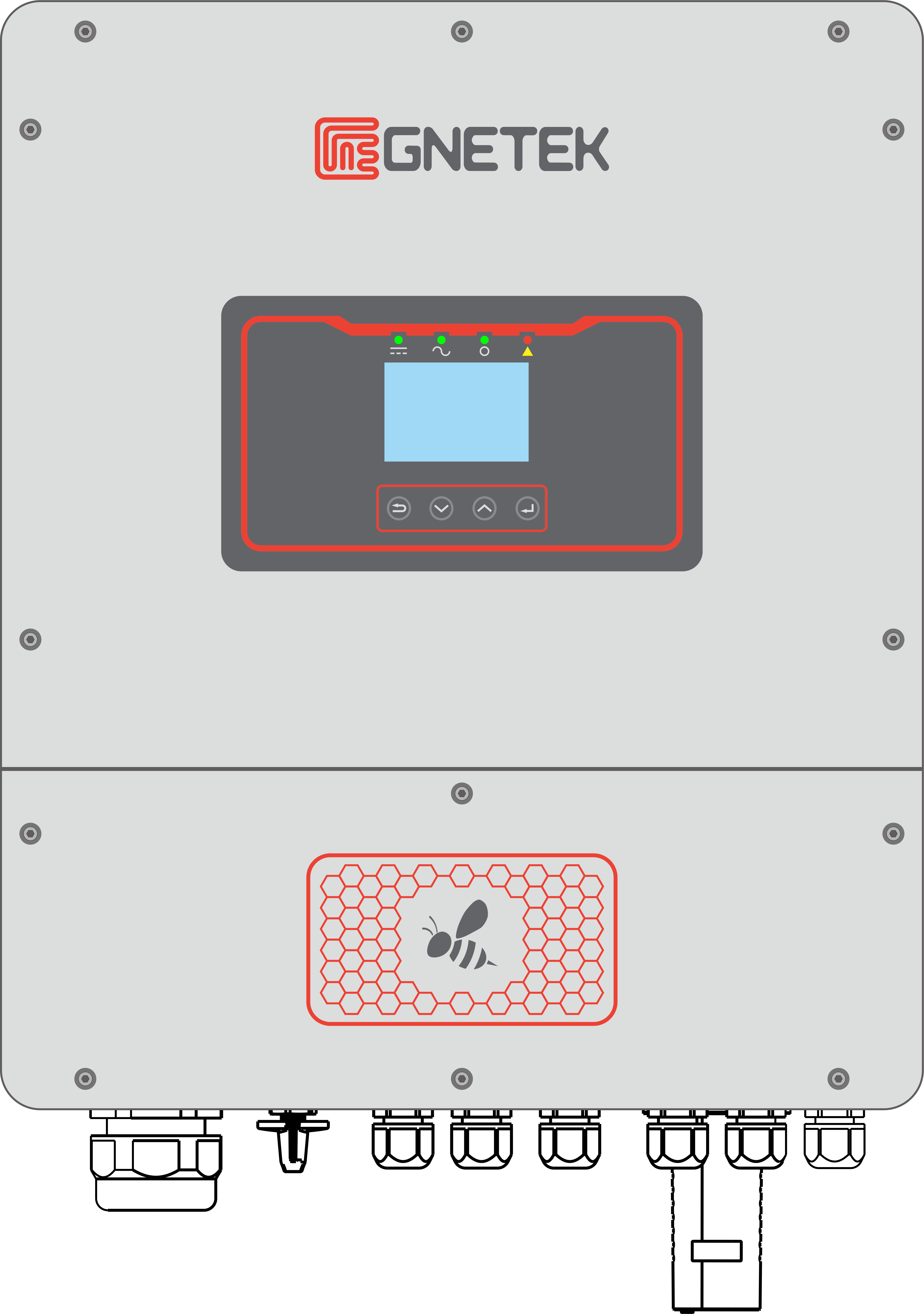

Hybrid Inverter Queenbee-6~10K
Reliability Safety Capacity
Queenbee-6-10K is the latest in hybrid inverter technology, versatile and flexible for the growing solar storage marketplace. This easily scalable hybrid inverter can be DC-coupled to a variety of batteries post-installation as well as can be paralleled to add capacity. The S6 hybrid is a grid-forming inverter that supports the latest high-powered PV modules with 16A DC inputs at each MPPT. This product line is also certified PVRSS and UL3741 compliant when utilized with proper racking and array-level shutdown devices, meaning that you can realize cost and time savings by supporting simpler installs. Safeguard your power, while ensuring the ability to easily grow your solution and preserve your investment.
Leading Features
•Supports up to 16 units in parallel (parallel off-grid mode) •Maximum charge/discharge current 200A
•6 programmable charging and discharging time periods •Supports AC coupling to retrofit existing PV systems
•Supports parallel connection of multiple batteries •Supports direct battery charging by diesel generator
•Supports arc detection
Specification
| Model | Queenbee-6K | Queenbee-8K | Queenbee-10K |
| Battery Input Data | |||
| Battery Type | Lead-acid or Lithium-ion | ||
| Battery Voltage Current（V） | 40-60 | ||
| Nominal battery voltage [V] | 48 | ||
| Max.Charging Current (A) | 135 | 190 | 200 |
| Max.Discharging Current (A) | 135 | 190 | 200 |
| Max.Charging Power (W) | 6000 | 8000 | 10000 |
| Max.Discharging Power (W) | 6600 | 8800 | 11000 |
| Charging strategy for Li-Ion Battery | Self-adaption to BMS | ||
| Number of Battery Input | 1 | ||
| PV String Input Data | |||
| Max.PV Input Power（W） | 7800 | 10400 | 13000 |
| Max.PV Input Voltage（V） | 500 | ||
| Start-up Voltage（V） | 125 | ||
| PV Input Voltage Range（V） | 125-500 | ||
| MPPT Voltage Range（V） | 150-425 | ||
| Full Load MPPT Voltage Range（V） | 200-425 | ||
| Rated PV Input Voltage（V） | 370 | ||
| Max.Operating PV Input Current(A) | 18+18 | 32+32 | |
| Max.Input Short-Circuit Current(A) | 27+27 | 44+44 | |
| No.of MPP Trackers/No.of Strings MPP Tracker | 2/1+1 | 2/2+2 | |
| Max.Inverter Backfeed Current to The Array | 0 | ||
| AC Input/Output Data | |||
| Rated AC Input/Output Active Power（W） | 8000 | 8000 | 8000 |
| Max.AC Input/Output Apparent Power(VA) | 8800 | 8800 | 8800 |
| Peak Power (off-grid)(W) | 2 Times of rated power,10s | ||
| Rated AC Input/Output Current(A) | 27.3/26.1 | 36.4/34.8 | 45.5/43.5 |
| Max. AC Input/Output Current(A) | 30/28.7 | 40/38.3 | 50/47.9 |
| Max.Continuous AC Passthrough (grid to load)(A) | 40 | 50 | 50 |
| Max.Output Fault Current(A) | 80 | ||
| Max.Output Overcurrent Protection(A) | 145 | ||
| Rated Input/Output Voltage/Range(V) | 220V/230V 0.8Un-1.1Un | ||
| Grid Connection Form | L+N+PE | ||
| Rated Input/Output Grid Frequency/Range | 50Hz/45Hz-55Hz 60Hz/55Hz-65Hz | ||
| Power Factor Adjustment Range | 0.8 leading-0.8 lagging | ||
| Total Current Harmonic Distortion THDi | ＜3% (of nominal power) | ||
| DC Injection Current | ＜0.5%In | ||
| Efficiency | |||
| Max.Efficiency | 97.60% | ||
| Euro Efficiency | 96.50% | ||
| MPPT Efficiency | ＞99% | ||
| Equipment Protection | |||
| DC Polarity Reverse Connection Protection | Yes | ||
| AC Output Overcurrent Protection | Yes | ||
| AC Output Overvoltage Protection | Yes | ||
| AC Output Short Circuit Protection | Yes | ||
| Thermal Protection | Yes | ||
| DC Terminal Insulation Impedance Monitoring | Yes | ||
| DC Component Monitoring | Yes | ||
| Ground Fault Current Monitoring | Yes | ||
| Arc fault circuit interrupter(AFCI) | Optional | ||
| Power Network Monitoring | Yes | ||
| Island Protection Monitoring | Yes | ||
| Earth Fault Detection | Yes | ||
| DC Input Switch | Yes | ||
| Overvltage Load Drop Protection | Yes | ||
| Residual Currrent(RCD)Detection | Yes | ||
| Surge Protection Level | TYPE II(DC),TYPE II(AC) | ||
| Interface | |||
| Display | LCD+LED | ||
| Communication Interface | RS23,RS485,CAN | ||
| Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN(optional) | ||
| General Data | |||
| Operating Temperature Range | ’-40 to+65℃，＞45℃Derating | ||
| Permissible Ambient Humidity | 0-100% | ||
| Permissible Altitude | 2000m | ||
| Noise | ＜30dB | ||
| Ingress Protection(IP)Rating | IP 65 | ||
| Inverter Topology | Non-Isolated | ||
| Over Voltage Category | OVC II(DC),OVC III(AC) | ||
| Cabinet size(W*H*D)[mm] | 470*565*238 (Exculuding connectors and brackets) | ||
| Weight(kg) | 32 | ||
| Warranty | 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter,More Info Please Refer to Warranty Policy | ||
| Type of Cooling | Intelligent Air Cooling | ||
| Grid Regulation | EN 50549,UNE 217002,NRS 097,IEEE 1547.1,SRD V2.0 | ||
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4,IEC/EN 62109-1,IEC/EN 62109-2,FCC,UL1741 | ||
