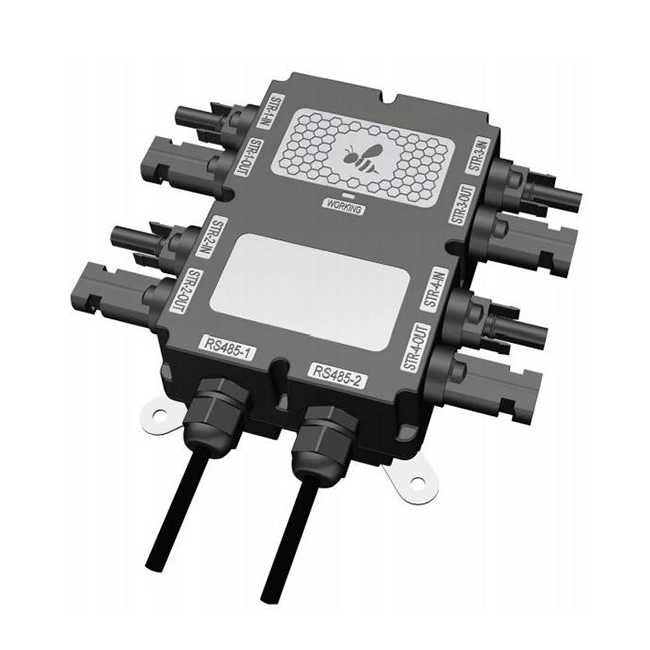

Beetrans-S4
The device can be used in conjunction with the Scoutbee fast shutdown unit to achieve rapid shutdown at the module level. Each device supports four strings, with a maximum of 30 modules in series per string. A single system can support up to 10 Beetrans-S4 devices in cascade.
It uses PLC communication method, eliminating the need for additional communication cables, making installation convenient and ensuring high reliability.
Parameters
|
Product Model |
Beetrans-S4 |
|
Basic Parameters |
|
|
Max Input Current Per String Supported String Number |
20A 4 strings |
|
Supported System Voltage |
1000V/1500V |
|
Power Supply Specifications |
12VDC |
|
Expandability |
Support for up to 10 Beetrans-S4 units in cascade |
|
Installation Specifications |
|
|
Connector |
Compatible with MC4 |
|
Weight |
504 g |
|
Operating Temperature |
-40 to +85℃ |
|
Protection Grade |
IP65 |
|
Functionality |
|
|
Local Rapid Shutdown Function |
Supported |
|
Remote Shutdown Function |
Optional |
|
Safety Open Circuit Voltage |
Supported |
|
Automatic Shutdown After Grid Power Failure Supported Product Models |
Supported |
|
Standards/Certifications |
|
|
Regulations |
NEC 2017/2020690.12 |
|
Safety |
IEC/EN 62109-1:2010 |
|
EMC Certification |
EN 61000-6-3:2007/+A1:2011 |
