Model

Honeybee400

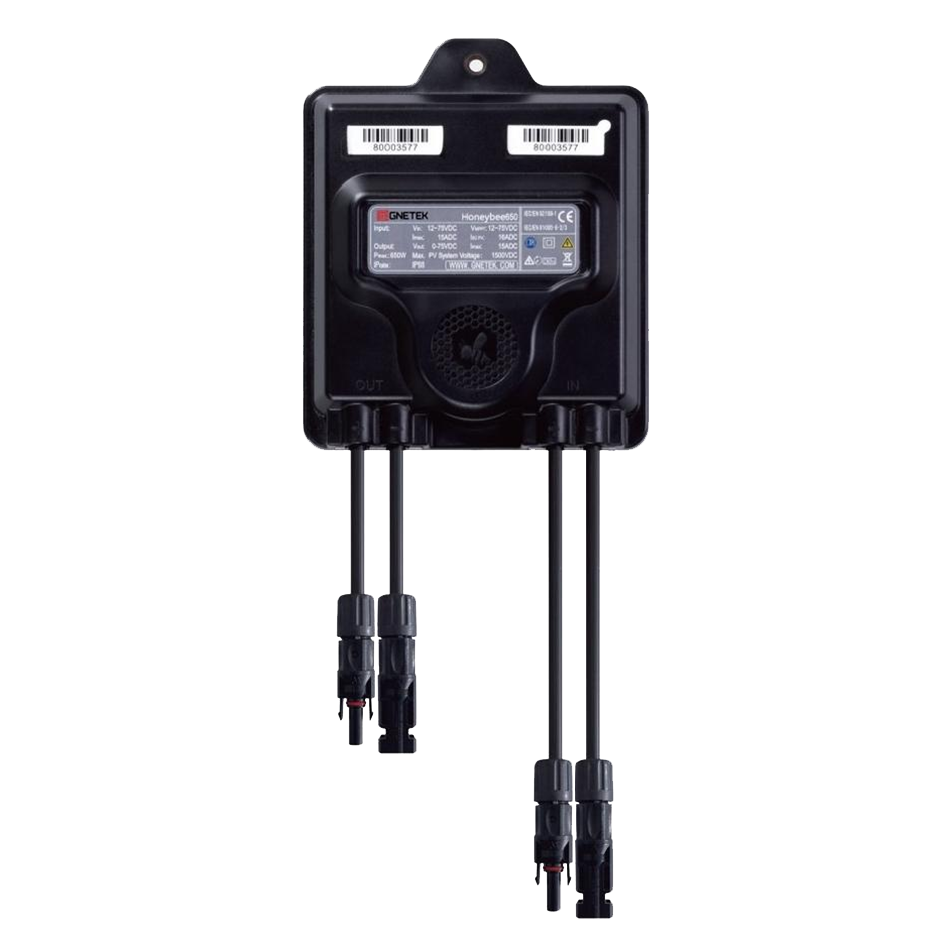

Honeybee650

Honeybee850

Input Parameter

Maximum Input Power

450 W

650 W

850 W

Maximum Input Voltage

75 VDC

75 VDC

60 VDC

Working Voltage Range

12～75 VDC

12～75 VDC

14～60 VDC

MPPT Voltage Range

12～75 VDC

12～75 VDC

14～60 VDC

Short-circuit Current(Isc)

15 A

16 A

23 A

Maximum Input Current
Output Parameters

13 A

15 A

21 A

Maximum Output Power

450W

650W

850 W

Voltage Range

0～75 VDC

0～75 VDC

0～60 VDC

Maximum Output Current

13 A

15 A

21 A

Maximum Conversion Efficiency

99.50%

99.50%

99.50%

Other

Maximum System Voltage

1500 VDC

Operation Temperature

-40～+85℃

Relative Humidity Protection Level

0～100% IP68

Protection Level

IⅡ

Communication Model

868M/915M/2.4G/PLC

Installation Specifications

Cable Length (input/output)

Input: 200 mm/Output: 1000 mm (customizable)

Size

130.3x109.6x25 mm

Weight

520 g

Connector (input/output)

Compatible with MC4、Staubli

Standard/Certification

Secure

IEC/EN 62109-1:2010
the Low Voltage Directive(2014/35/EU)

EMC

EN 61000-6-1:2007 EN 61000-6-3:2007/+A1:2011
EN 61000-6-2:2005 EN 61000-6-4:2007/+A1:2011
the EMC Directive(2014/30/EU)

Communication

EN 50663:2017, EN 62479:2010
EN 301489-1 V2.2.3, EN 301489-3 V2.1.1, EN 300220-2 V3.1.1
